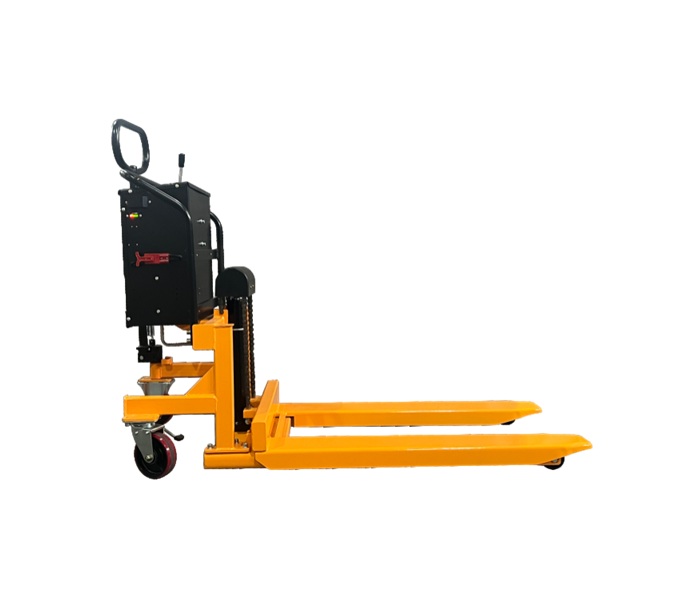

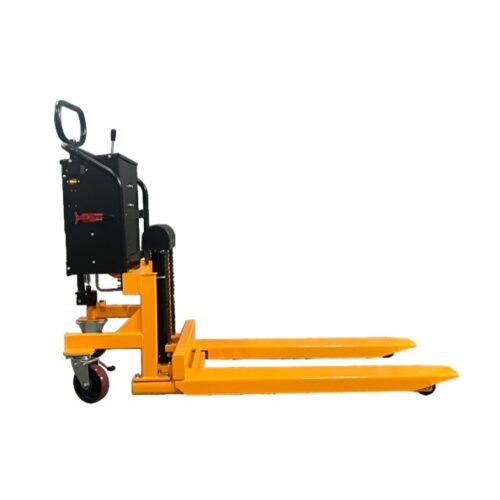

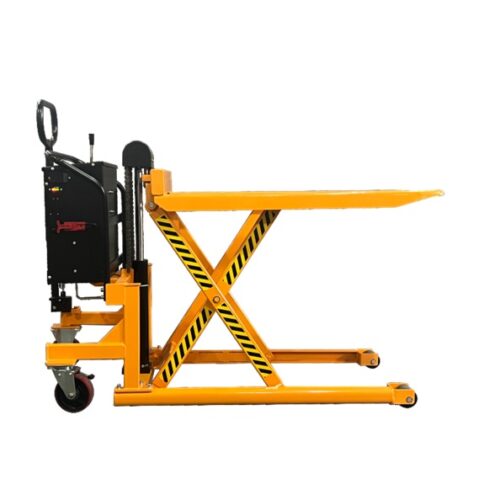

Electric Skid Lift Pallet Truck – DGB1S

Model: DGB1S

Capacity available: 500kg; 1000kg

Combination of pallet truck and platform truck
Suitable for situations where forklifts are lacking or inaccessible
Equipped with safety valve to prevent overloading
Adding a base structure, the moving and lifting do not interfere with each other
Use as a workshop operation platform
Equipped with brakes on the rear wheels to improve handling safety Electric lifting and lowering
Platform boards available as optional

Data Sheet：

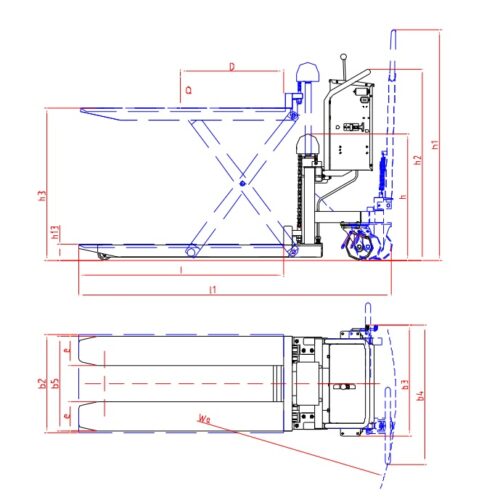

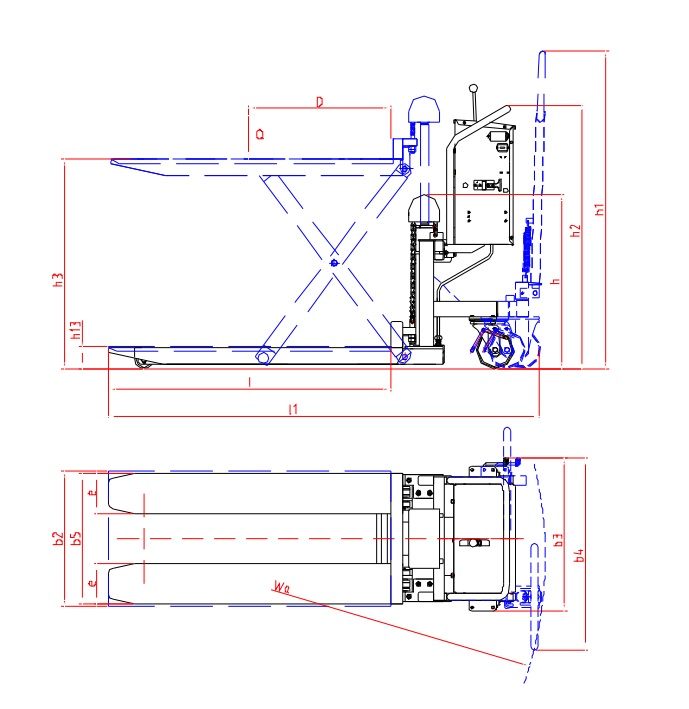

Model	DGB0.5S-520	DGB0.5S-680	DGB1S-520	DGB1S-680
Rated Capacity Q (kg)	500	500	1000	1000
Fork Min. Height h13 (mm)	85	85	85	85
Fork Max. Height h3 (mm)	830	830	830	830
Fork Width b5 (mm)	520	680	520	680
Fork Length l (mm)	1115	1115	1115	1115
Single Fork Width e (mm)	162	162	162	162
Load Center C (mm)	560	560	560	560
Truck Min. Height h (mm)	688	688	688	688
Front Wheel Dimension (mm)	Ф75×75	Ф75×75	Ф75×75	Ф75×75
Rear Wheel Dimension (mm)	Ф150×40	Ф150×40	Ф150×40	Ф150×40
Turning Radius Wa (mm)	1507	1507	1730	1730
Overall Length l1 (mm)	1560	1560	1600	1600
Truck Width b3 (mm)	602	762	558	718
Handrail Height h2 (mm)	1045	1045	1045	1045
Battery Capacity (Ah)	65	65	65	65
Charger Output Voltage (V)	12	12	12	12
Lifting Motor (KW/V)	0.8KW/12V	0.8KW/12V	0.8KW/12V	0.8KW/12V
Quick Lift Switch	Automatic	Automatic	Automatic	Automatic
Net Weight (kg)	160	164	174	178
2pcs/pallet Gross Weight (kg)	365	373	393	401
2pcs/pallet Dimension (cm)	227x62x125	227x78x125	227x62x125	227x78x125
20ft container utilization (pcs)	36	28	36	28
40ft container utilization (pcs)	76	60	76	60
