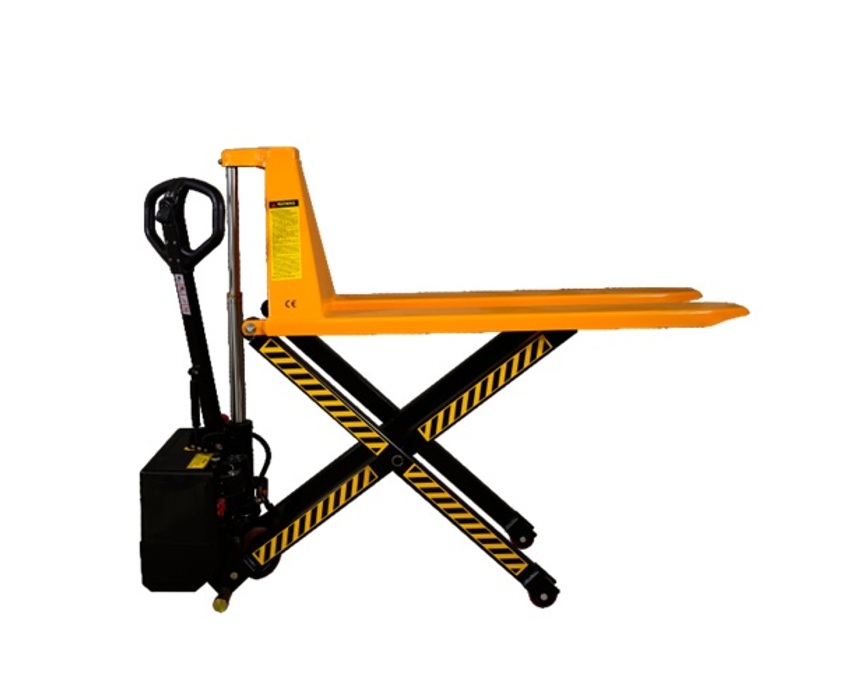

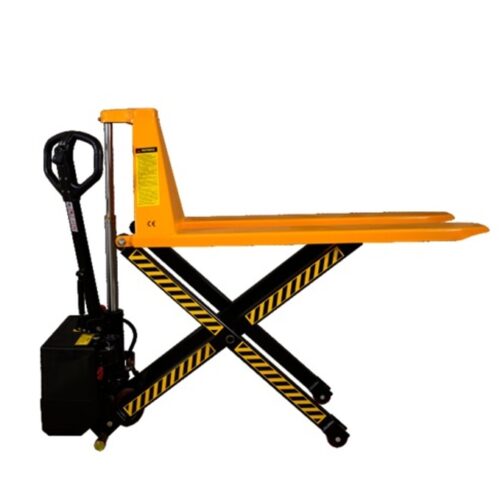

Electric Scissors Lifter with Double Cylinders – DGB1A

Model: DGB1A

Combination of pallet truck and platform truck
Suitable for situations where forklifts are lacking or inaccessible
Double cylinders design
Equipped with safety valve to prevent overloading
Handle automatically return to the vertical position when there is no external force acting on it

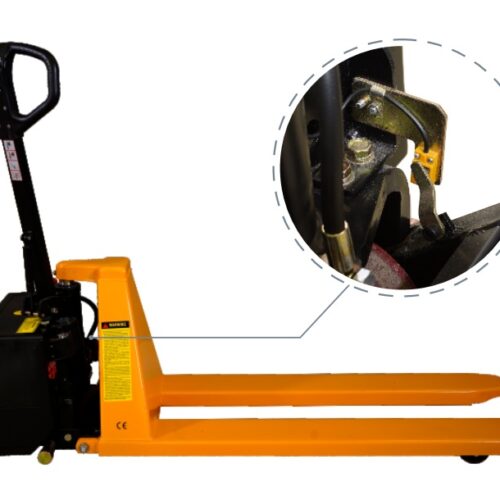

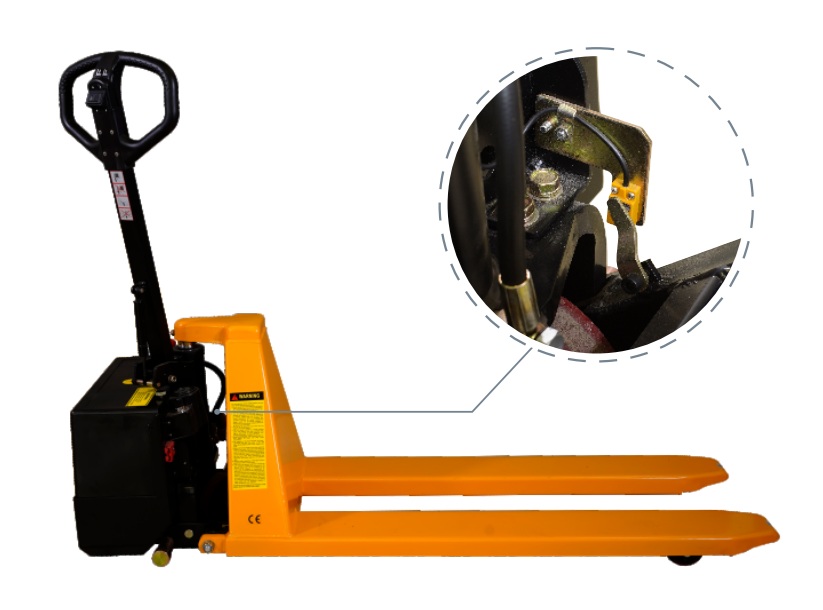

Equipped with lift height limit protection and current overload protection
CE certification
Customizable for length: 800/1500/1800/2000

Handle Type：

Power Pack:

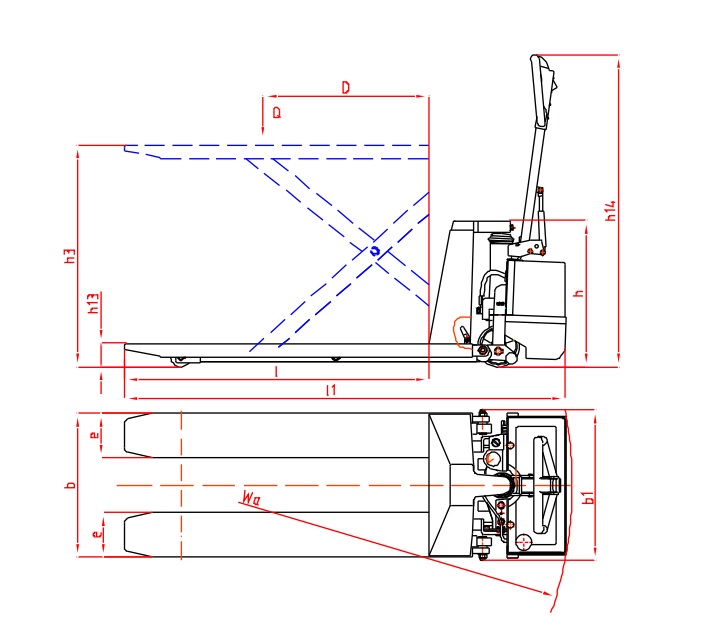

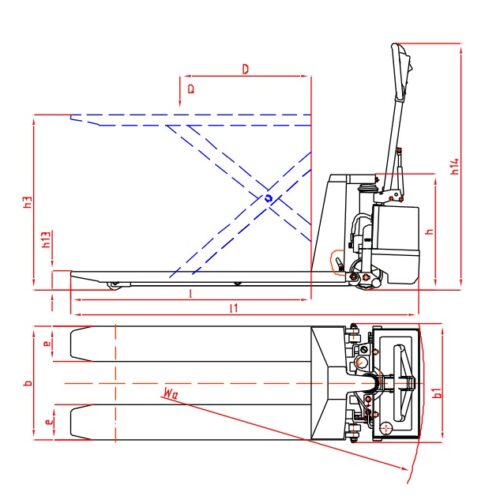

Model	DGB1A-520	DGB1A-680	DGB1.5A-520	DGB1.5A-680
Rated Capacity Q (kg)	1000	1000	1500	1500
Fork Min. Height h13 (mm)	85	85	85	85
Fork Max. Height h3 (mm)	800	800	800	800
Fork Width b5 (mm)	520	680	520	680
Fork Length l (mm)	1140	1140	1100	1100
Single Fork Width e (mm)	162	162	162	162
Load Center C (mm)	600	600	600	600
Truck Min. Height h (mm)	528	528	528	528
Front Wheel Dimension (mm)	Ф75×50	Ф75×50	Ф75×50	Ф75×50
Rear Wheel Dimension (mm)	Ф150×40	Ф150×40	Ф150×40	Ф150×40
Turning Radius Wa (mm)	1458	1458	1412	1412
Overall Length l1 (mm)	1600	1600	1560	1560
Overall Width b1 (mm)	543	703	543	703
Overall Height h14 (mm)	1200	1200	1200	1200
Battery Capacity (Ah)	60	60	60	60
Charger Output Voltage (V)	12	12	12	12
Lifting Motor	1.2Kw/12V	1.2Kw/12V	1.2Kw/12V	1.2Kw/12V
Net Weight (kg)	126	132	137	143
Quick Lift Switch	Automatic	Automatic	Automatic	Automatic
2pcs/pallet Gross Weight (kg)	282	294	304	316
2pcs/pallet Dimension (cm)	218x58x72	218x74x72	218x58x72	218x74x72
20ft container utilization (pcs)	60	42	60	42
40ft container utilization (pcs)	120	96	120	96
