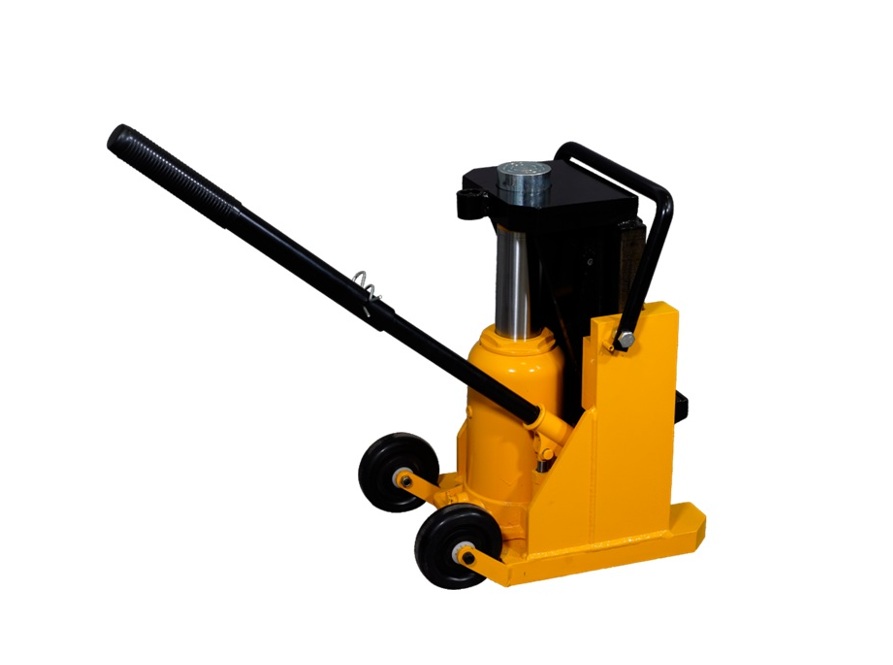

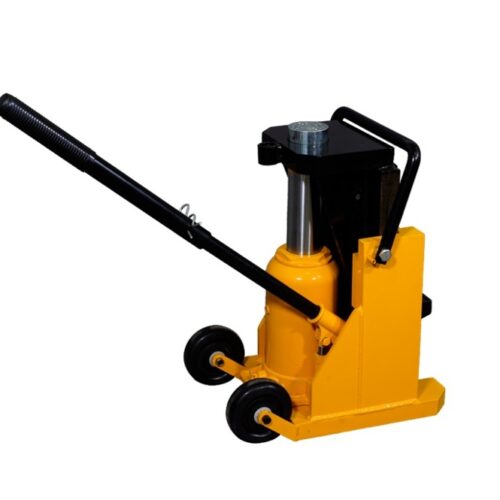

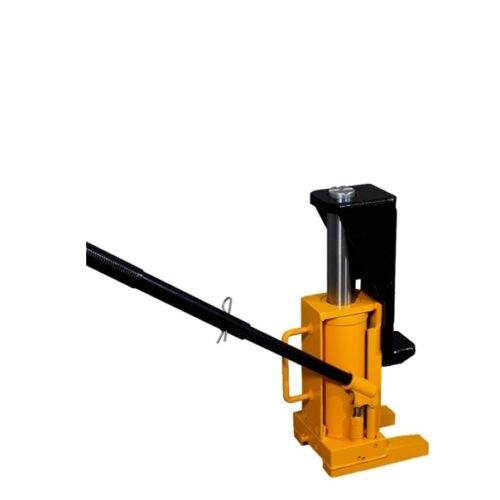

Toe Jack Heavy Duty Type – TB series
Model: TB100; TB200
Capacity available： 6 ton; 12 ton
- Heavy duty design, compact structure
- Two supporting surfaces, widely use
- Equipped with overload protection for save operation
- Used for moving houses, installing machine tools and building bridges and etc.
- CE certification
Looking for the right solution?

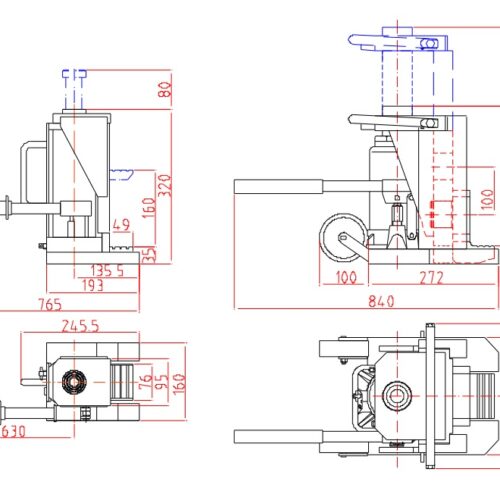

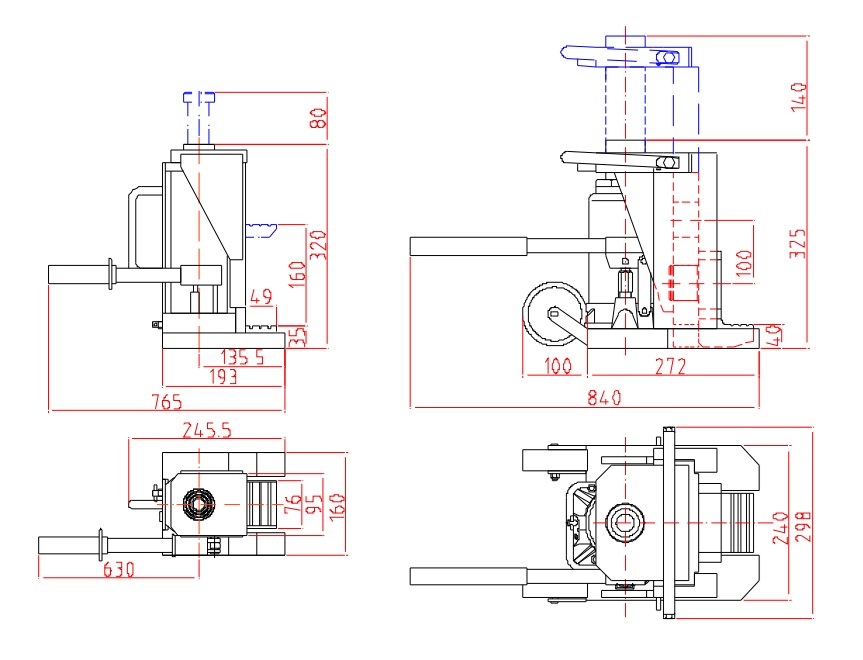

Data Sheet:
| Model | TB100 | TB200 |
| Toe/Top Rated Capacity (kg) | 6000/7500 | 12000/15000 |
| Toe/Top Min. Height (mm) | 35/320 | 40/325 |
| Lifting Range (mm) | 160 | 140 |
| Screw rod adjustable height (mm) | 0～80 | 0～60 |
| Top supporting load (kg) | 100000 | 200000 |
| N.W./G.W. (kg) | 25/28 | 68/72 |
| Packing Way: 1pc/carton Packing Dimension (mm) | 280x180x360 | 410x330x370 |
