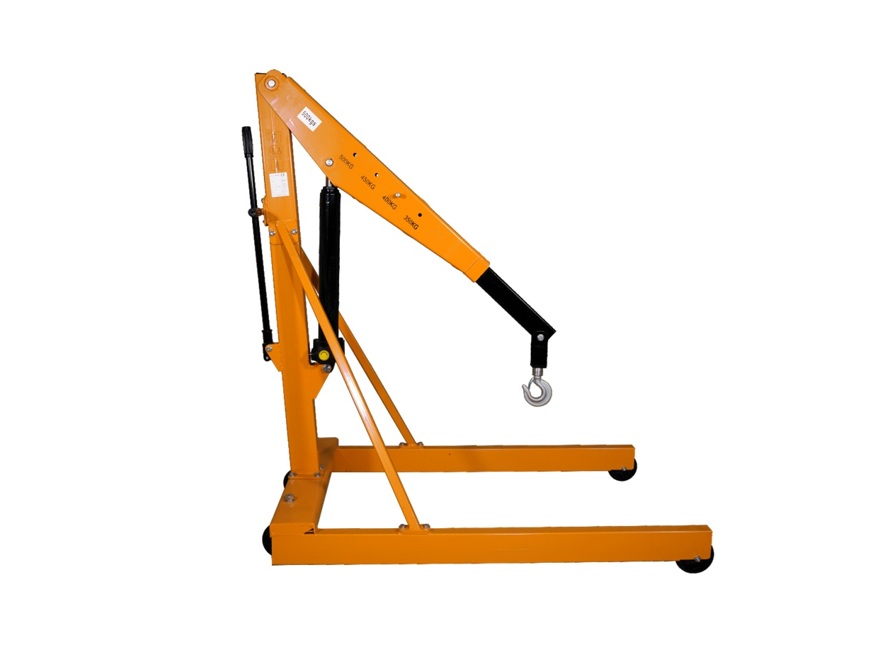

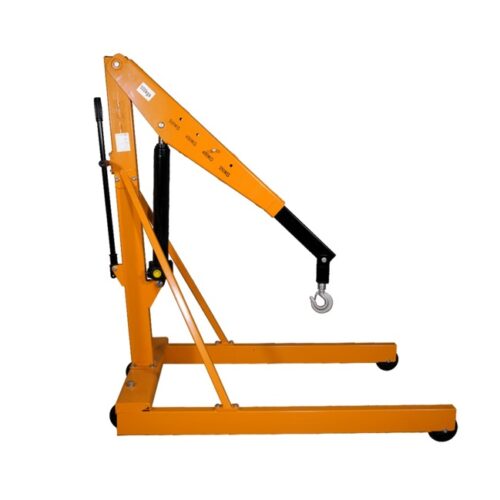

Parallel Chassis Workshop Crane – SA series

SA series is unidirectional pump design

SA·C series is bidirectional quick lift pump design

  • The boom has four hook positions P1/P2/P3/P4
  • Suitable for European standard pallets
  • Heavy duty design, easy for operation
  • Overload protection to ensure safe use
  • 125% overload test for each piece before leaving the factory
  • REACH certification
  • CE certification
Category:

Looking for the right solution?

Data Sheet:

Model SA500 SA500C SA1000 SA1000C
Rated Capacity at P1/P2/P3/P4 (kg) 500/450/400/350 500/450/400/350 1000/900/800/700 1000/900/800/700
Net Weight (kg) 86 86 86 86
Packing Dimension (cm) 140x100x18 140x100x18 140x100x18 140x100x18

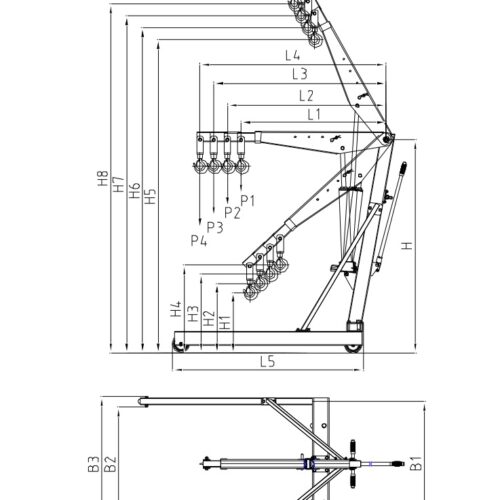

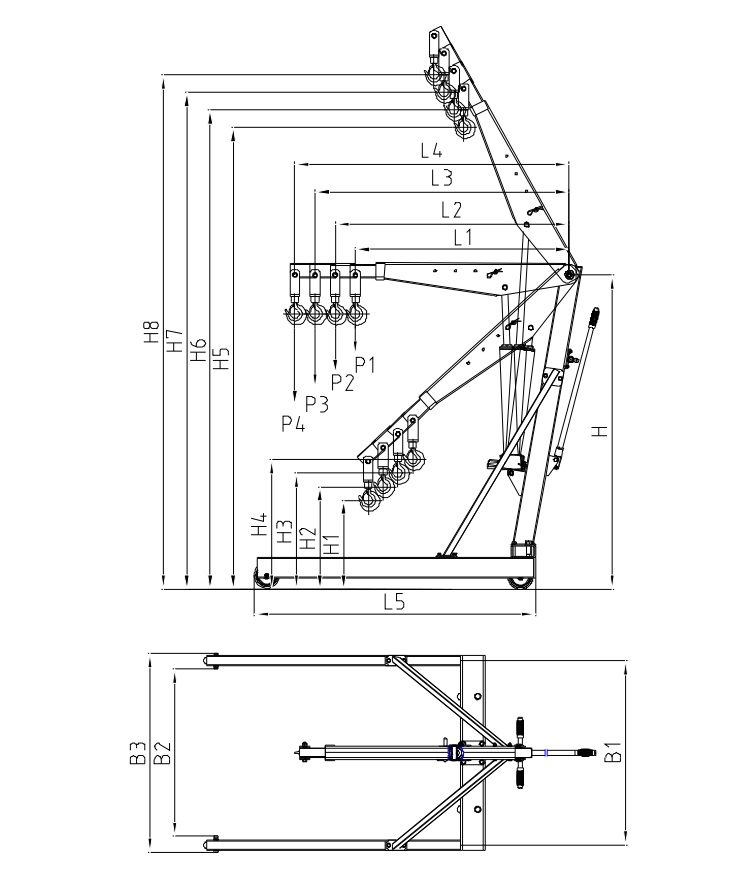

Dimension (mm) L1 L2 L3 L4 L5 H H1 H2 H3 H4 H5 H6 H7 H8 B1 B2 B3
SA500/SA1000 1060 1160 1260 1360 1395 1600 430 500 570 640 2225 2310 2400 2475 915 830 985
SA500C/SA1000C 1060 1160 1260 1360 1395 1600 430 500 570 640 2225 2310 2400 2475 915 830 985
