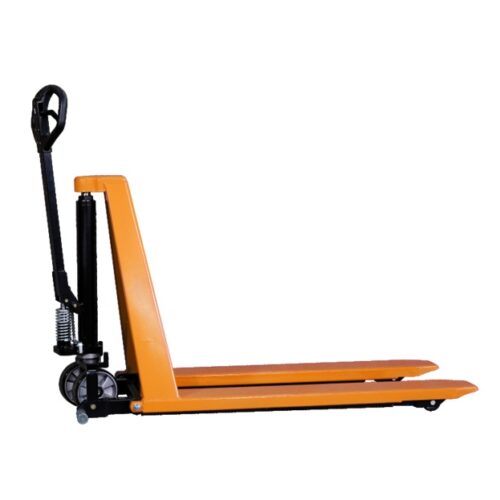

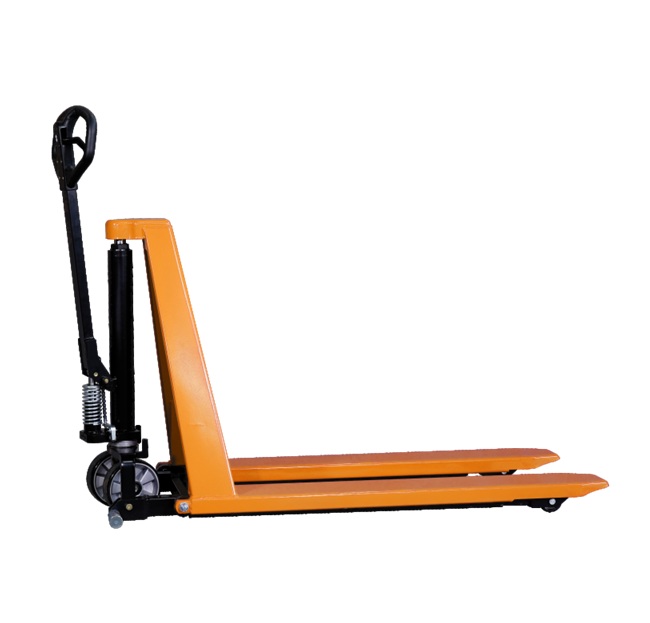

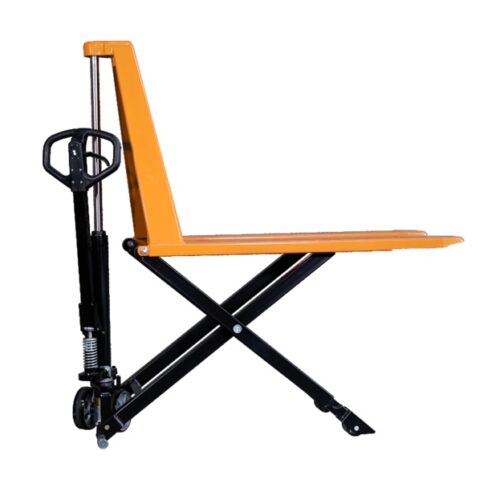

Manual Scissors Lifter with Single Cylinder – HLT1B

Model: HLT1B

Single cylinder design， stable during use
Larger front and rear wheels, easier dragging
When lifting height is more than 420mm , support shaft stably supports the ground to prevent sliding as a brake
CE certification
Customizable for length: 800/1500/1800/2000

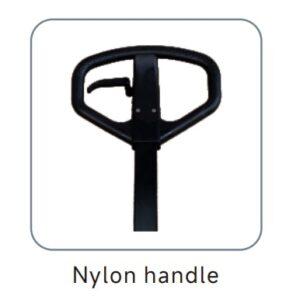

Handle Type：

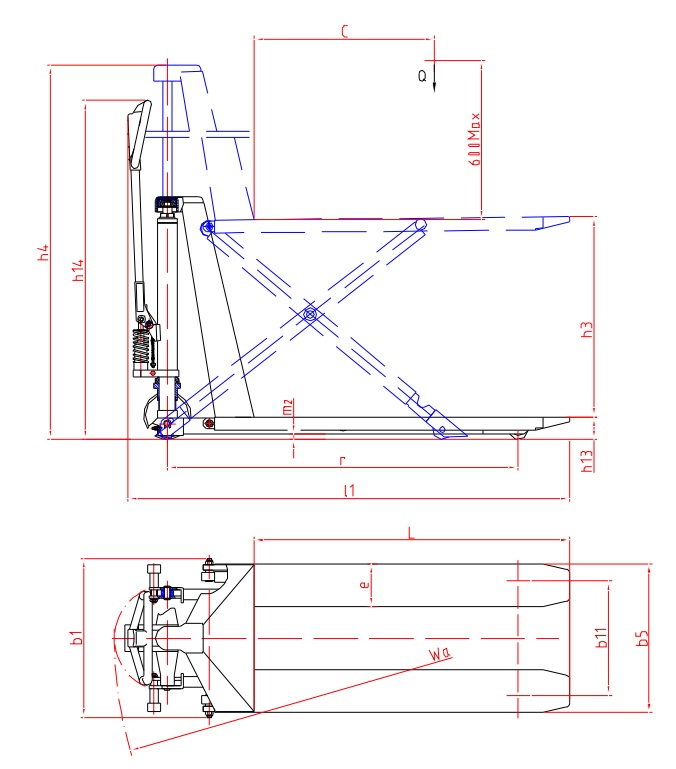

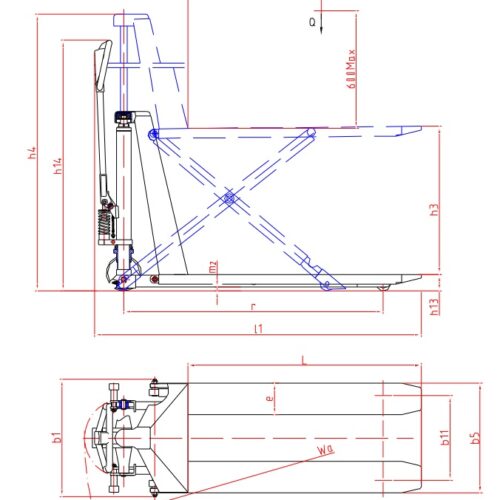

Data Sheet:

Model	HLT1B-560	HLT1B-680	HLT1.5B-560	HLT1.5B-680
Rated Capacity Q (kg)	1000	1000	1500	1500
Fork Min. Height h13 (mm)	85±2	85±2	85±2	85±2
Fork Max. Height h3 (mm)	≥725	≥725	≥725	≥725
Fork Width b5 (mm)	560	680	560	680
Fork Length l (mm)	1190	1190	1190	1190
Single Fork Width e (mm)	162	162	162	162
Load Center C (mm)	600	600	600	600
Front Wheel Dimension (mm)	Ф75×75	Ф75×75	Ф75×75	Ф75×75
Rear Wheel Dimension (mm)	Ф180×50	Ф180×50	Ф180×50	Ф180×50
Turning Radius Wa (mm)	1521	1521	1521	1521
Overall Length l1 (mm)	1665	1665	1665	1665
Overall Width b1 (mm)	599	719	599	719
Overall Height h14 (mm)	1286	1286	1286	1286
Stocks with rated load	≤65	≤65	≤65	≤65
Stocks without load	≤28	≤28	≤28	≤28
Lowering Speed with rated load (mm/s)	50-100	50-100	50-100	50-100
Lowering Speed without load (mm/s)	30-100	30-100	30-100	30-100
Oil Capacity (L)	0.8	0.8	0.8	0.8
Net Weight (kg)	107	110	118	121
Quick Lift Switch	Automatic	Automatic	Automatic	Automatic
4pcs/pallet Gross Weight (kg)	464	486	505	530
4pcs/pallet Dimension (cm)	218.5x63x110.5	218.5x74x110.5	218.5x63x110.5	218.5x74x110.5
20ft container utilization (pcs)	72	56	72	56
40ft container utilization (pcs)	144	112	144	112
