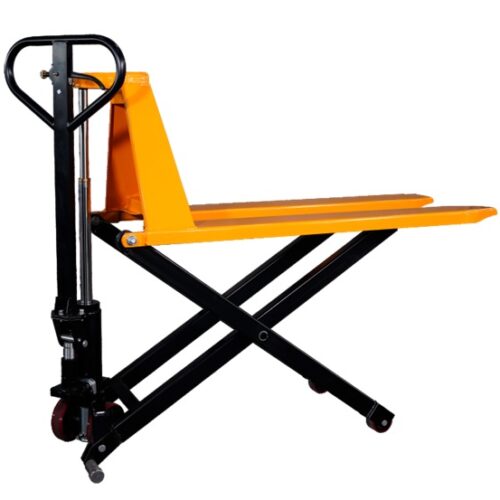

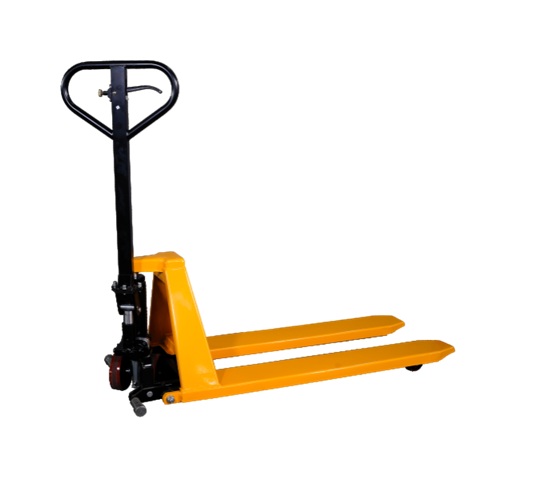

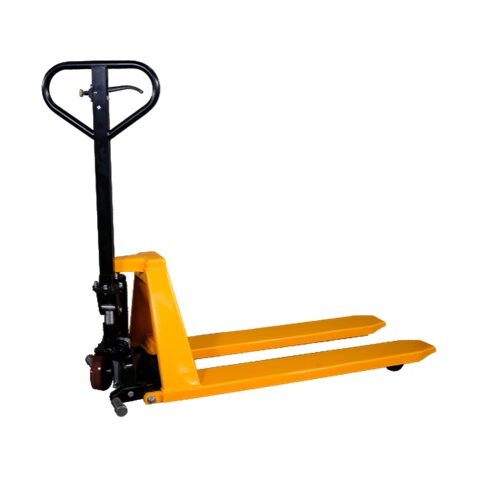

Manual Scissors Lifter with Double Cylinders – HLT1

Model: HLT1

Combination of pallet truck and platform truck
Suitable for situations where forklifts are lacking or inaccessible
Low minimum height for wide range of applications
Equipped with safety valve to prevent overloading
Double cylinders design increase container utilization
When lifting height is more than 420mm, support shaft stably supports the ground to prevent sliding as a brake
Customizable fork length: 800/1500/1800
CE certification

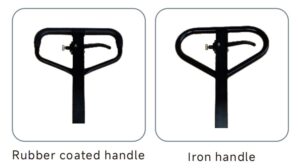

Optional Handles：

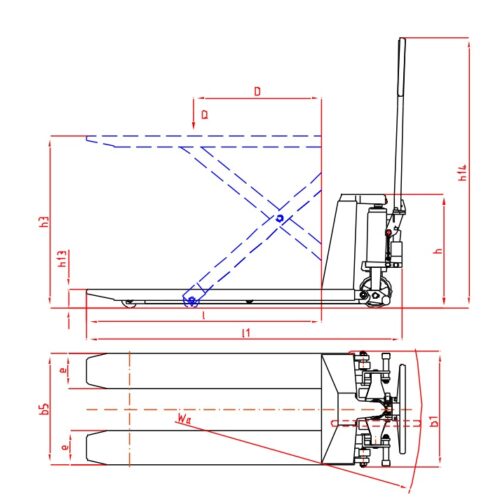

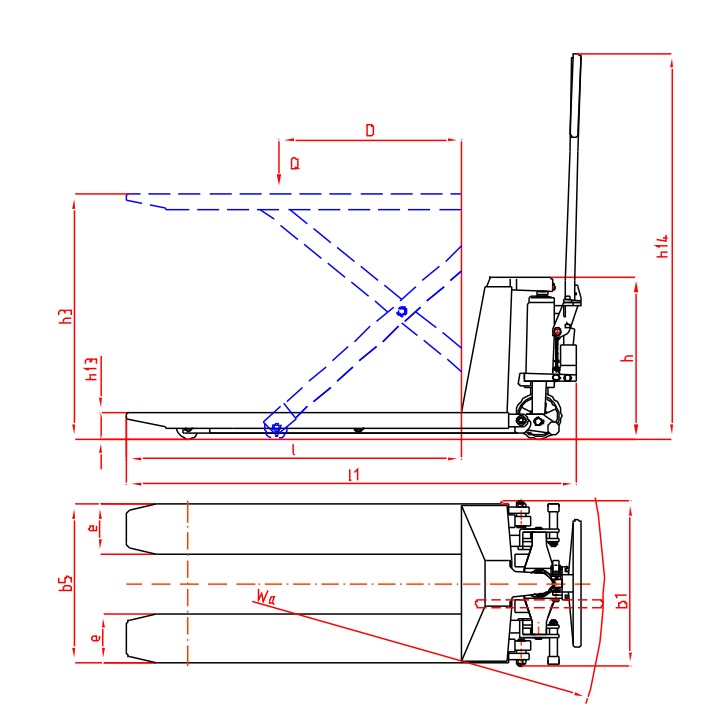

Data Sheet:

Model	HLT1-520	HLT1-680	HLT1.5-520	HLT1.5-680
Rated Capacity Q (kg)	1000	1000	1500	1500
Fork Min. Height h13 (mm)	85	85	85	85
Fork Max. Height h3 (mm)	800	800	800	800
Fork Width b5 (mm)	520	680	520	680
Fork Length l (mm)	1140	1140	1100	1100
Single Fork Width e (mm)	162	162	162	162
Load Center D (mm)	600	600	600	600
Truck Min. Height h (mm)	528	528	528	528
Front Wheel Dimension (mm)	Ф75×50	Ф75×50	Ф75×50	Ф75×50
Rear Wheel Dimension (mm)	Ф150×40	Ф150×40	Ф150×40	Ф150×40
Turning Radius Wa (mm)	1406	1406	1406	1406
Overall Length l1 (mm)	1520	1520	1520	1520
Overall Width b1 (mm)	543	703	543	703
Overall Height h14 (mm)	1260	1260	1260	1260
Net Weight (kg)	88	93	100	104
Quick Lift Switch	Manual	Manual	Manual	Manual
4pcs/pallet Gross Weight (kg)	382	402	430	446
4pcs/pallet Dimension (cm)	194x58x72	194x74x72	194x58x78	194x74x78
20ft container utilization (pcs)	120	96	120	96
40ft container utilization (pcs)	240	192	240	192
