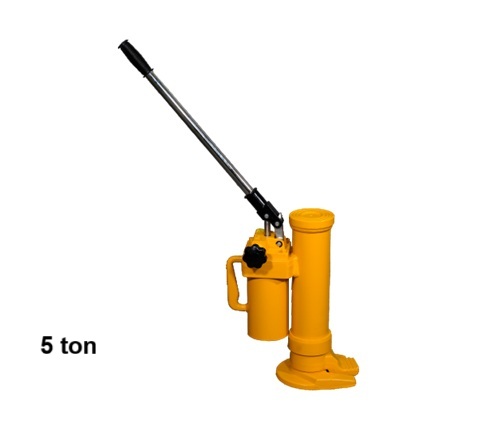

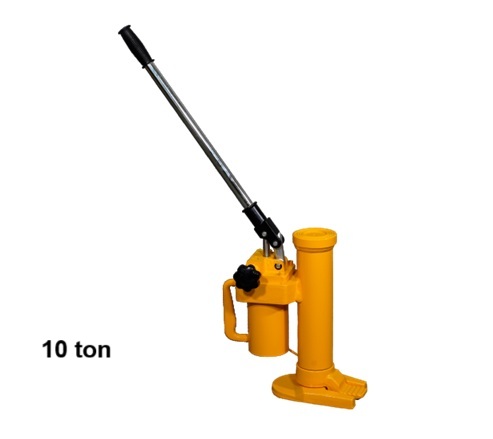

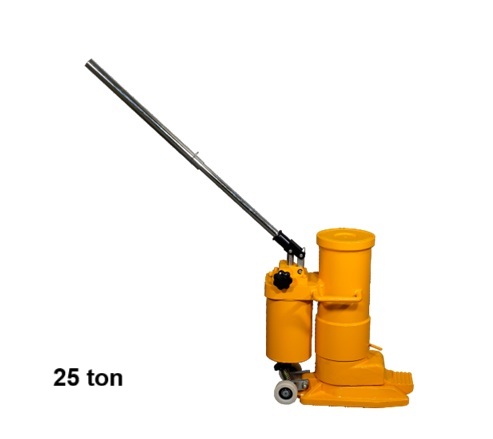

Hydraulic Jack – LJ series
Model: LJ series
Capacity available: 5ton; 10ton; 25ton
- This hydraulic jack is used for the repair, maintenance and installation of heavy machinery
- Products have a compact structure. The oil cylinder can be rotated 360 °

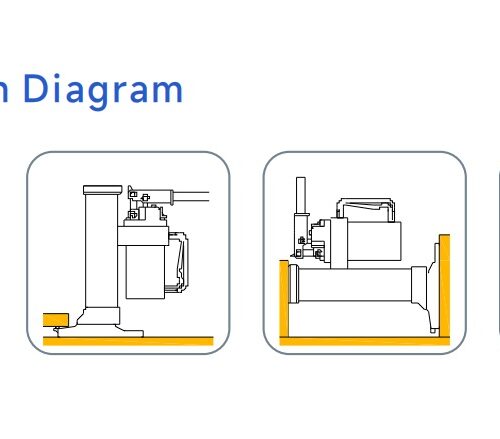

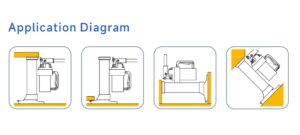

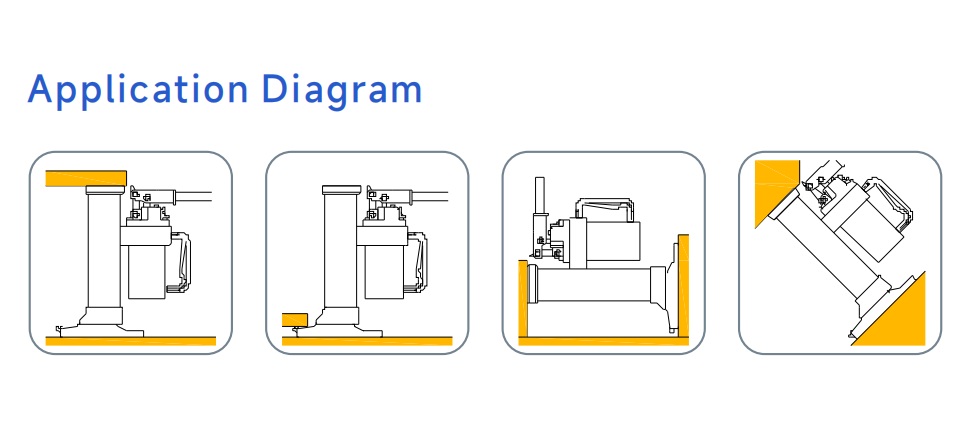

- Toe and top two supporting surfaces, suitable for various occasions
- The ascending speed is slow but stable, and the position of the lifted object can be accurately adjusted
- Equipped with overload protection function
- CE certification
Looking for the right solution?

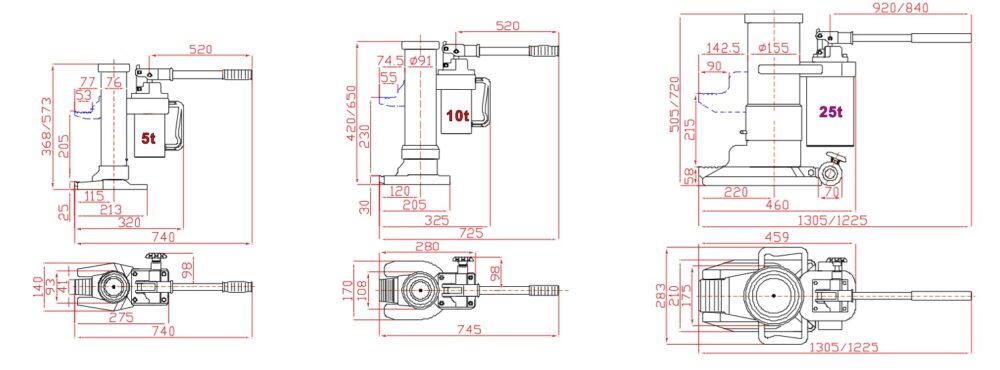

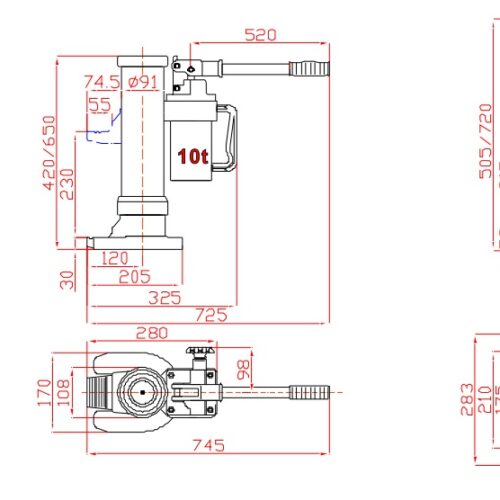

Data Sheet:
| Model | LJ5 | LJ10 | LJ25 |
| Rated Capacity both Toe and Top (kg) | 5000 | 10000 | 25000 |
| Toe Lifting Range (mm) | 25-230 | 30-260 | 58-273 |
| Top Lifting Range (mm) | 368-573 | 420-650 | 505-720 |
| Handle Force (N) | ≤380 | ≤400 | ≤400 |
| Net Weight (kg) | 25 | 35 | 102 |
| Packing Way: 1pc/carton Packing Dimension (mm) | 365x200x430 | 380x225x485 | 540x320x615 |
