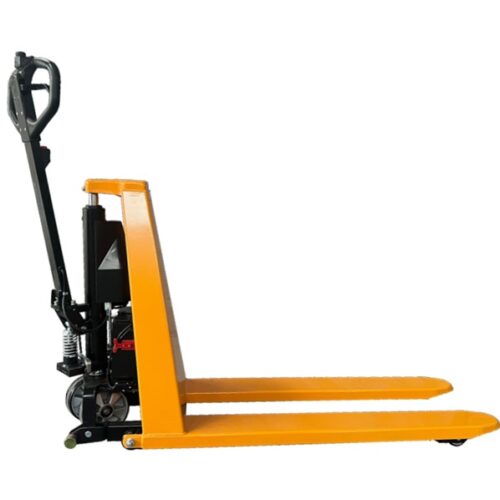

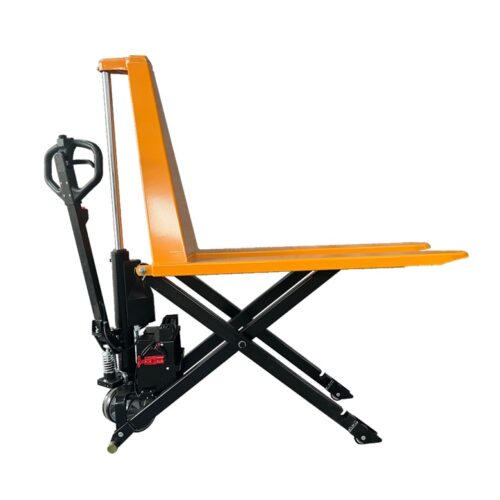

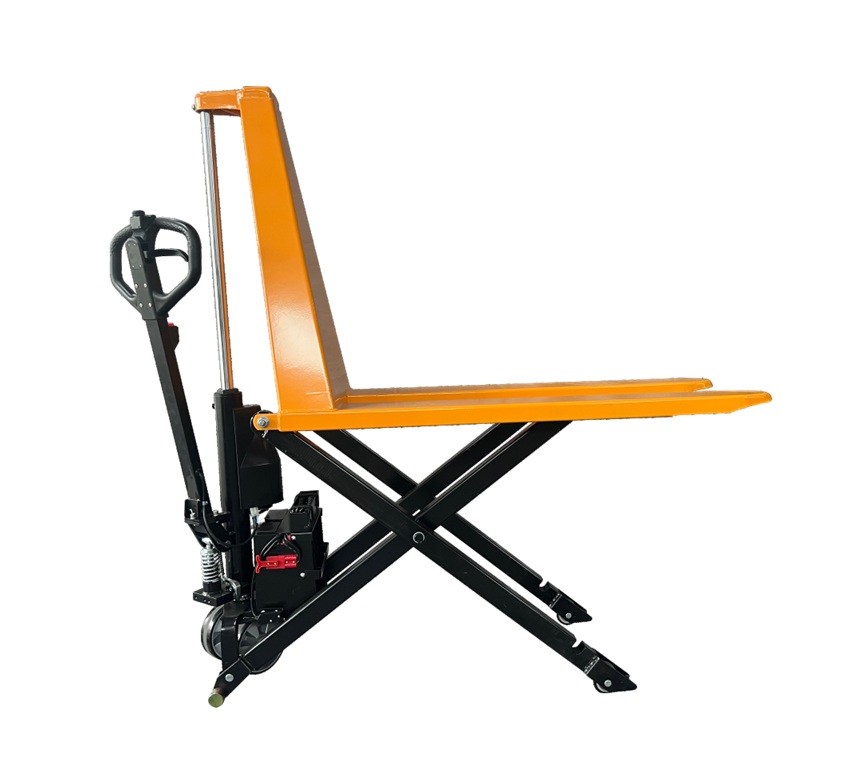

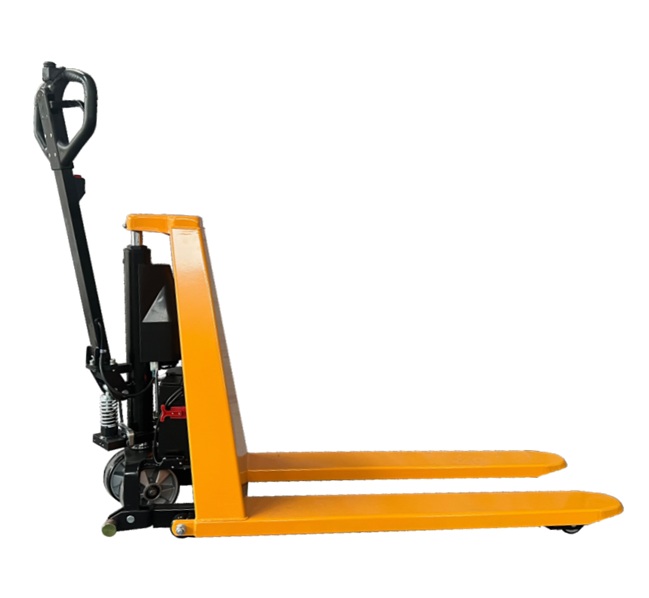

Electric Scissors Lifter with Single Cylinder – DGB1CM
Model: DGB1CM
- Single cylinder design, more stable during use
- Larger front and rear wheels, easier dragging
- When lifting height is more than 420mm , support shaft stably supports the ground to prevent sliding as a brake
- Electric lifting, equipped large capacity battery
- Optimized design, cost-effective
- EMC certification
- CE certification
- Customizable for length: 800/1500/1800/2000
Looking for the right solution?
Handle Type：

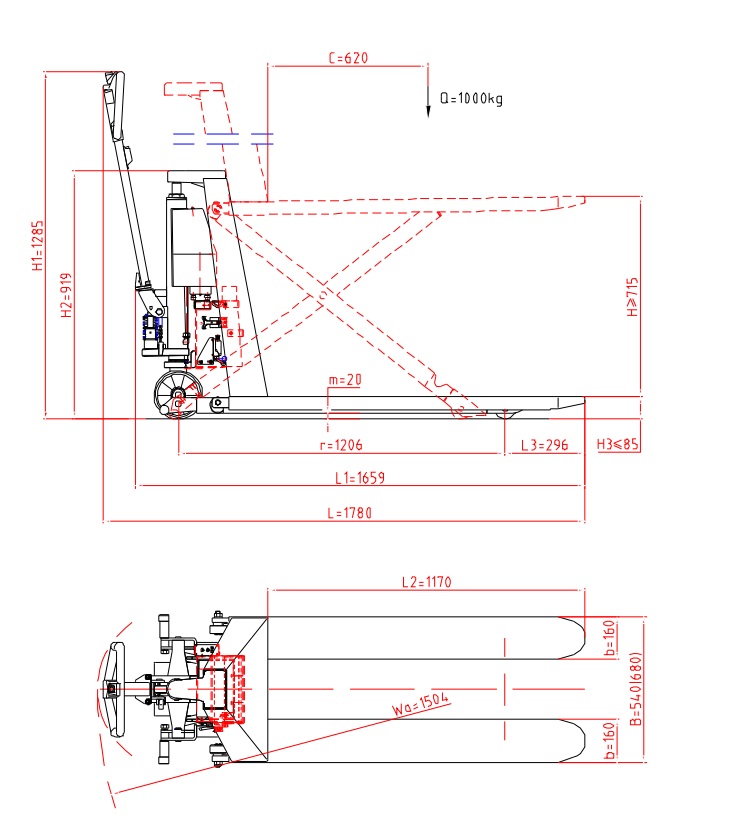

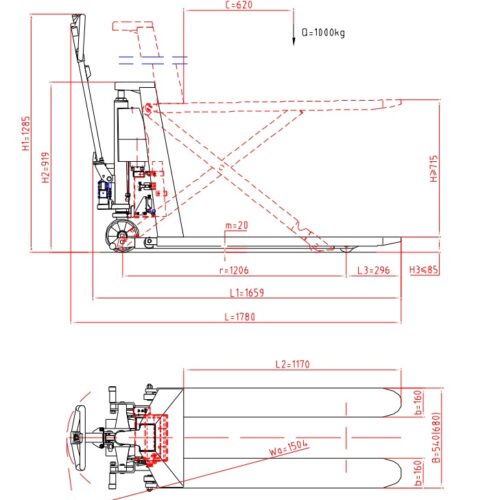

Data Sheet：
| Model | DGB1CM-540 | DGB1CM-680 |
| Rated Capacity (kg) | 1000 | 1000 |
| Fork Min. Height (mm) | 85 | 85 |
| Fork Max. Height (mm) | 800 | 800 |
| Fork Width (mm) | 540 | 685 |
| Fork Length (mm) | 1170 | 1170 |
| Single Fork Width (mm) | 160 | 160 |
| Load Center C (mm) | 600 | 600 |
| Front Wheel Dimension (mm) | Ф75×50 | Ф75×50 |
| Rear Wheel Dimension (mm) | Ф180×50 | Ф180×50 |
| Turning Radius Wa (mm) | 1504 | 1504 |
| Overall Length (mm) | 1687 | 1687 |
| Overall Width (mm) | 579 | 719 |
| Overall Height (mm) | 1780 | 1780 |
| Battery Capacity (V/Ah) | 12V/52Ah | 12V/52Ah |
| Charger Output Voltage (V/A) | 12V/6A | 12V/6A |
| Lifting Motor (V/KW) | 12V/0.8KW | 12V/0.8KW |
| Stocks with rated load | ≤68 | ≤68 |
| Stocks without load | ≤28 | ≤28 |
| Lowering Speed with rated load (mm/s) | 50-100 | 50-100 |
| Lowering Speed without load (mm/s) | 30-100 | 30-100 |
| Lifting Speed with rated load (mm/s) | ≥28 | ≥28 |
| Lifting Speed without load (mm/s) | ≥48 | ≥48 |
| Oil Capacity (L) | 0.8 | 0.8 |
| Net Weight (kg) | 134 | 138 |
| 4pcs/pallet Gross Weight (kg) | 466 | 482 |
| 4pcs/pallet Dimension (cm) | 214x63x111 | 214x76x111 |
| 20ft container utilization (pcs) | 72 | 56 |
| 40ft container utilization (pcs) | 160 | 128 |
