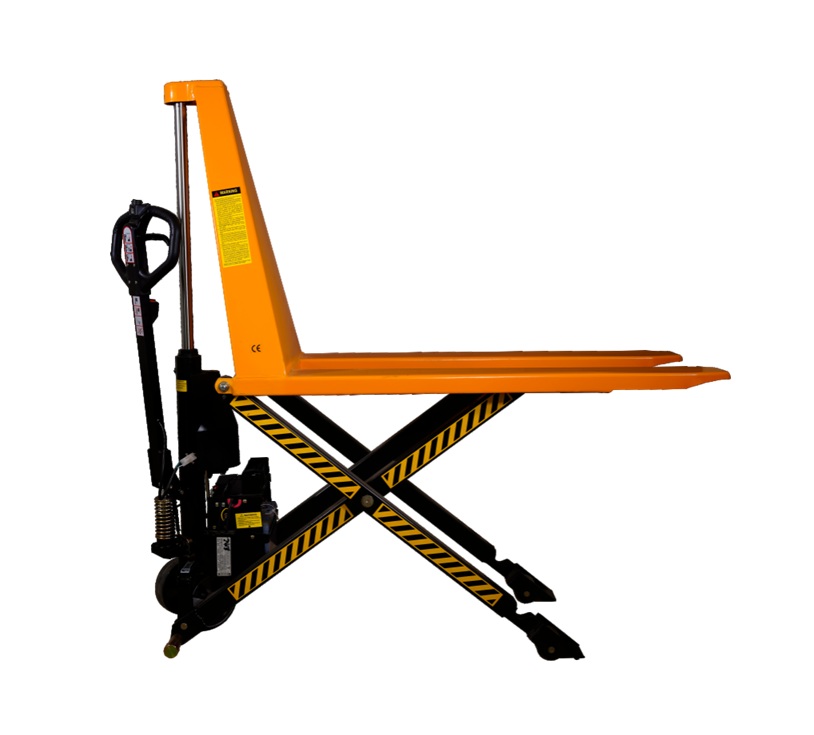

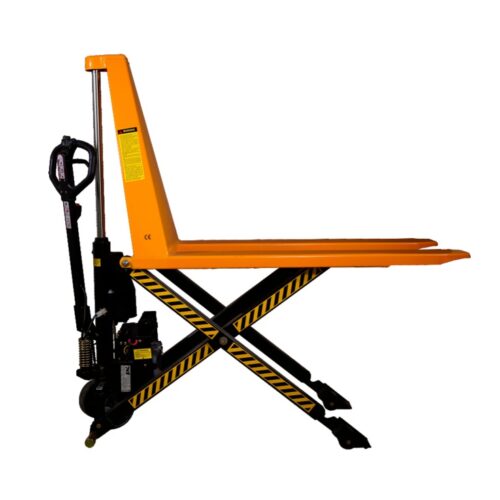

Electric Scissors Lifter with Single Cylinder – DGB1B

Model: DGB1B

Combination of pallet truck and platform truck
Suitable for situations where forklifts are lacking or inaccessible
Single cylinder design
Equipped with safety valve to prevent overloading
Handle automatically return to the vertical position when there is no external force acting on it
CE certification
Customizable for length: 800/1500/1800/2000

Handle Type：

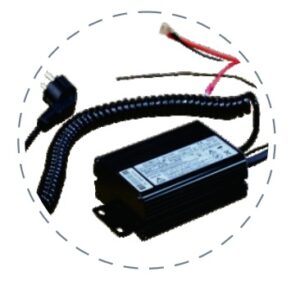

Charger Type:

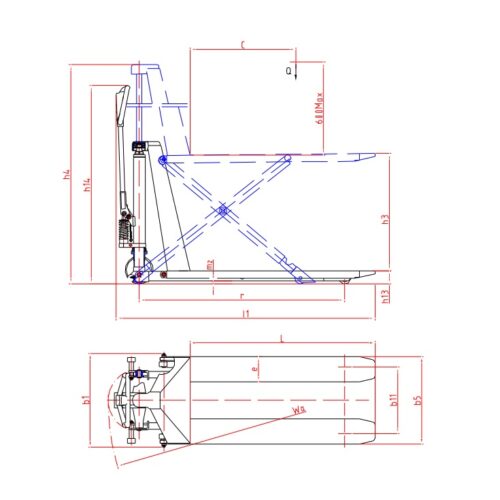

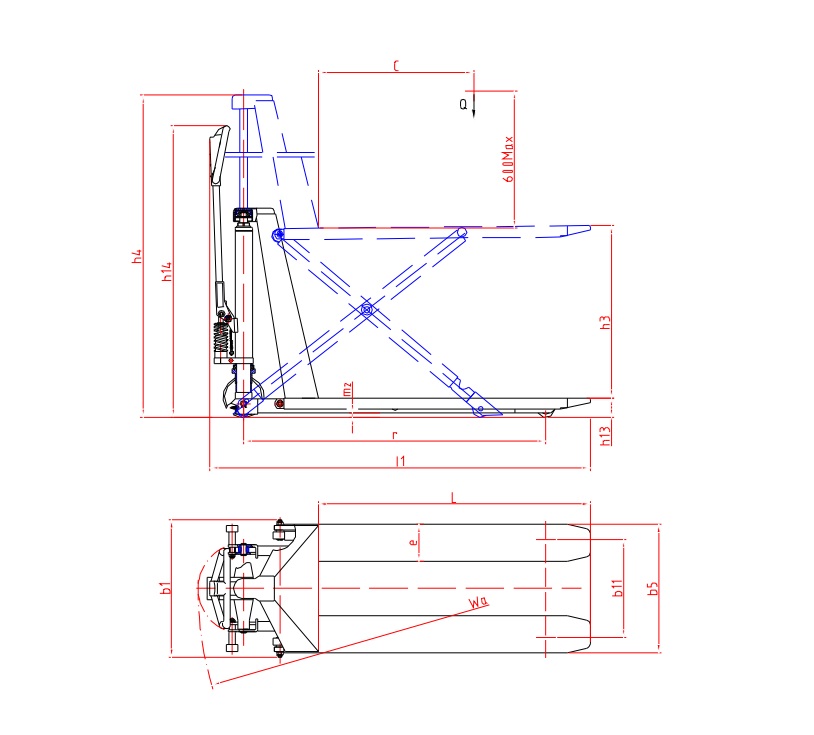

Model	DGB1B-560	DGB1B-680	DGB1.5B-560	DGB1.5B-680
Rated Capacity Q (kg)	1000	1000	1500	1500
Fork Min. Height h13 (mm)	85	85	85	85
Fork Max. Height h3 (mm)	800	800	800	800
Fork Width b5 (mm)	560	680	560	680
Fork Length l (mm)	1190	1190	1190	1190
Single Fork Width e (mm)	162	162	162	162
Load Center C (mm)	600	600	600	600
Truck Min. Height h (mm)	528	528	528	528
Front Wheel Dimension (mm)	Ф75×75	Ф75×75	Ф75×75	Ф75×75
Rear Wheel Dimension (mm)	Ф180×50	Ф180×50	Ф180×50	Ф180×50
Turning Radius Wa (mm)	1521	1521	1521	1521
Overall Length l1 (mm)	1665	1665	1665	1665
Overall Width b1 (mm)	599	719	599	719
Overall Height h14 (mm)	1286	1286	1286	1286
Battery Capacity (V/Ah)	12V/60Ah	12V/60Ah	12V/60Ah	12V/60Ah
Charger Output Voltage (V/A)	12V/6A	12V/6A	12V/6A	12V/6A
Lifting Motor (KW)	0.8	0.8	0.8	0.8
Stocks with rated load	≤65	≤65	≤65	≤65
Stocks without load	≤28	≤28	≤28	≤28
Lowering Speed with rated load (mm/s)	50-100	50-100	50-100	50-100
Lowering Speed without load (mm/s)	30-100	30-100	30-100	30-100
Lifting Speed with rated load (mm/s)	≥28	≥28	≥28	≥28
Lifting Speed without load (mm/s)	≥48	≥48	≥48	≥48
Oil Capacity (L)	0.8	0.8	0.8	0.8
Net Weight (kg)	140	154	150	155
4pcs/pallet Gross Weight (kg)	594	605	634	645
4pcs/pallet Dimension (cm)	218.5x63x111	218.5x74x111	218.5x63x111	218.5x74x111
20ft container utilization (pcs)	72	56	72	56
40ft container utilization (pcs)	152	128	152	128
