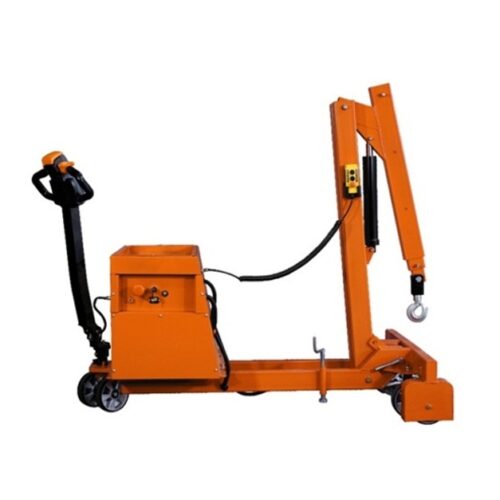

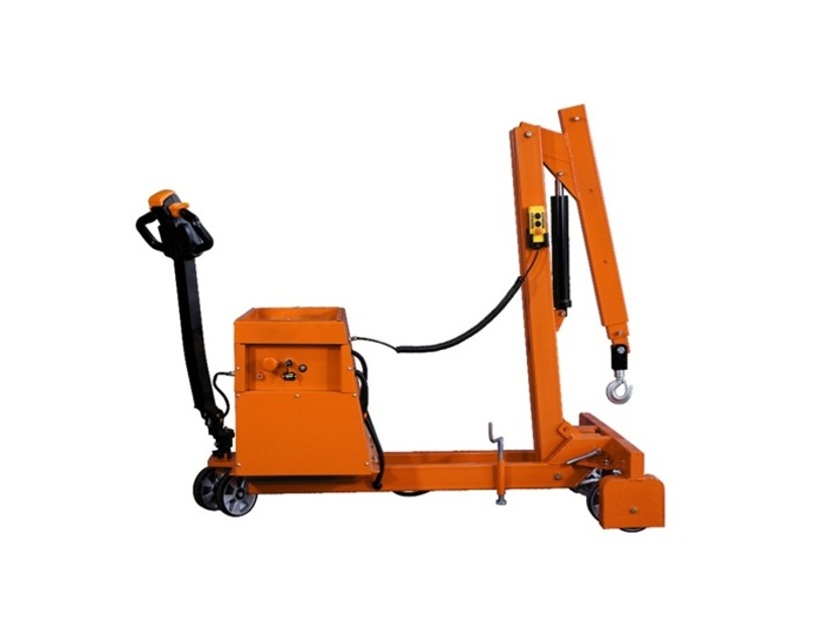

Electric Counter-Balance Crane – DSDZ0.55
Model: DSDZ0.55
- Crane arm has 5 positions
- Counter-balance design, could be moved very close to the goods
- Electric type: Both lifting & lowering the goods and walking by electric
Looking for the right solution?
Data Sheet:
| Model | DSDZ0.55 | ||
| Rated Capacity | P1 | 550 kg | |
| P2 | 400 kg | ||
| P3 | 300 kg | ||
| P4 | 220 kg | ||
| P5 | 150 kg | ||
| Lowering Speed | ≤76mm/s | ||
| Motor Power/Voltage | 0.8kw/24V | ||
| Battery Capacity | 52Ahx2 | ||
| Motor Working System | S3=3.0% | ||
| Walking Speed | 2.0km/h | ||
| Packing Dimension | Split Packing | Rack: 1870x970x560mm; Counter Weight Box: 1870x970x560mm | |
| Assembled Packing | 1775x920x1400mm | ||
| N.W./G.W. | Split Packing | Rack:176kg/196kg; Counter Weight Box:358kg/368kg | |
| Assembled Packing | 534kg/544kg | ||
| 20ft container utilization | Split Packing | 16pcs | |
| Assembled Packing | 10pcs | ||
